FULL DOWN DRAFT

The best airflow style, our full down draft spray booths do an excellent job controlling overspray and contamination. Air enters the booth through a full-length, filtered ceiling plenum or intake chamber and flows vertically over the product or vehicle and into the filtered exhaust pit in the floor. The intake and exhaust filter layout is designed for even air velocity throughout the working area.

Standard Booth Includes:

All in One Spray Booth and Baking Oven
Standard Size 7.2mL x 4.2mW x 2.7m Internal Height
Standard Door Size 3mW x 2.7mH
Both Inground and Above Ground models available
Fully Filtered Ceiling (Minimise Turbelence)
Fully Filtered Floor (Promotes better Air Flow)
40 Day Light Tubes Standard
Stainless Steel Direct Fired Heating System
Space saving ceiling mounted machinery standard
Fully Galvanised Australian Made Gridded Flooring
Unique design allowing easy servicing

Options:

Extended Model Available 8.62m Long
Drive Thru
60 T5 Day Light tubes produces 2,000 lux
Fully Automated Touchscreen Display
Waterborne Curing System
Customised sizes available
Direct Fired Heating system with modulating flame insures more accurate temperatures

Booth Front View

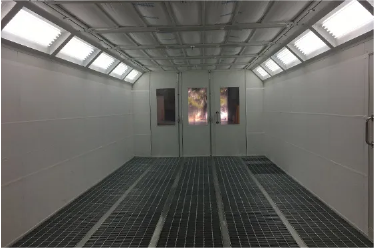

Internal Booth View
